KMT Sockets

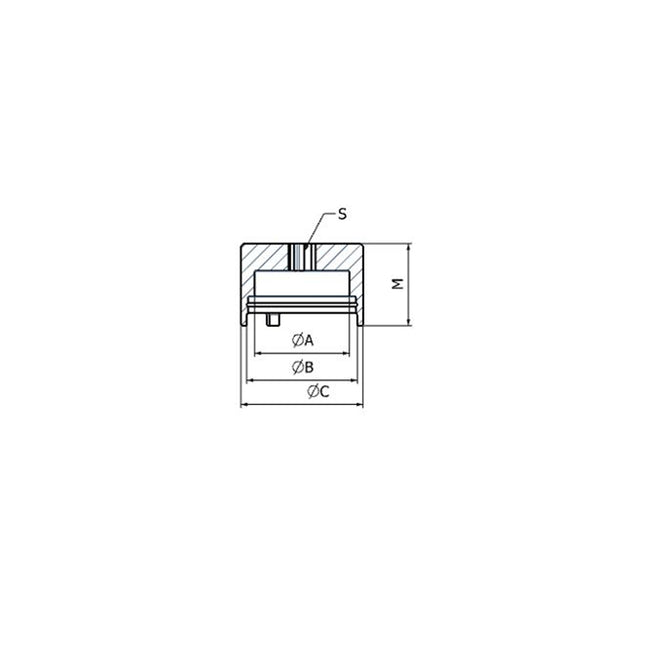

696500-KMT4 - Locknut Socket The Sykes-Pickavant KMT Sockets are designed for the safe, accurate installation and removal of KMT locknuts - specialised precision nuts used to secure bearings and other critical components on shafts. These nuts feature slots around their circumference, which means a standard socket or spanner cannot be used without risking damage to the nut or shaft. KMT sockets are purpose-built tools that engage directly with the nut’s slots, providing a positive drive connection that distributes torque evenly. This prevents slippage, rounding, or distortion - common issues when improvised tools are used - and helps maintain the integrity of both the locknut and the component it secures. The socket demands less space around the bearing arrangement than when using a hook spanner and allows the use of ratchets and torque wrenches via a 1/2" drive. KMT Socket Specifications Size A (mm) B (mm) C (mm) M (mm) S (mm) Weight Kgs KMT4 26 36.7 42 45 1/2" 0.28 KMT5 30 40.8 46 45 1/2" 0.5 KMT6 35 45.8 51 45 1/2" 0.38 KMT7 40 50.8 56 45 1/2" 0.45 KMT8 50 60.7 67 45 1/2" 0.64 KMT9 55 65.7 72 45 1/2" 0.75 KMT10 60 69.9 77 50 1/2" 0.87 KMT11 65 79.5 87 50 3/4" 1.2 KMT12 70 83.5 92 53 3/4" 1.3   Please note image shows KMT12 socket for illustrative purposes only.

Read more less

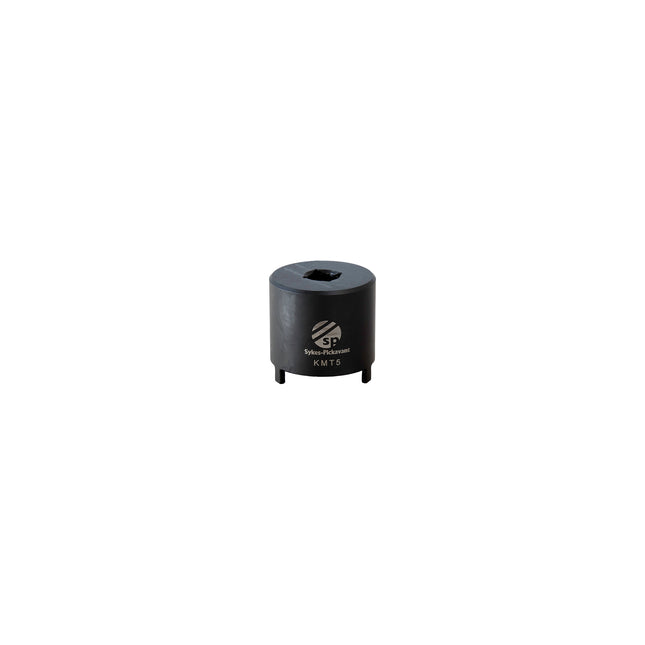

696500-KMT5 - Locknut Socket The Sykes-Pickavant KMT Sockets are designed for the safe, accurate installation and removal of KMT locknuts - specialised precision nuts used to secure bearings and other critical components on shafts. These nuts feature slots around their circumference, which means a standard socket or spanner cannot be used without risking damage to the nut or shaft. KMT sockets are purpose-built tools that engage directly with the nuts slots, providing a positive drive connection that distributes torque evenly. This prevents slippage, rounding, or distortion - common issues when improvised tools are used - and helps maintain the integrity of both the locknut and the component it secures. The socket demands less space around the bearing arrangement than when using a hook spanner and allows the use of ratchets and torque wrenches via a 1/2" drive. KMT Socket Specifications Size A (mm) B (mm) C (mm) M (mm) S (mm) Weight Kgs KMT4 26 36.7 42 45 1/2" 0.28 KMT5 30 40.8 46 45 1/2" 0.5 KMT6 35 45.8 51 45 1/2" 0.38 KMT7 40 50.8 56 45 1/2" 0.45 KMT8 50 60.7 67 45 1/2" 0.64 KMT9 55 65.7 72 45 1/2" 0.75 KMT10 60 69.9 77 50 1/2" 0.87 KMT11 65 79.5 87 50 3/4" 1.2 KMT12 70 83.5 92 53 3/4" 1.3 Please note image shows KMT12 socket for illustrative purposes only.

Read more less

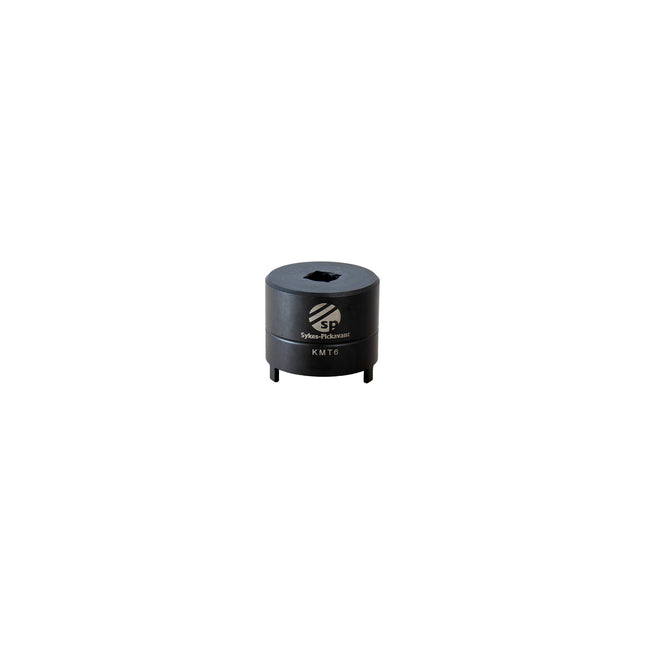

696500-KMT6 - Locknut Socket The Sykes-Pickavant KMT Sockets are designed for the safe, accurate installation and removal of KMT locknuts - specialised precision nuts used to secure bearings and other critical components on shafts. These nuts feature slots around their circumference, which means a standard socket or spanner cannot be used without risking damage to the nut or shaft. KMT sockets are purpose-built tools that engage directly with the nut’s slots, providing a positive drive connection that distributes torque evenly. This prevents slippage, rounding, or distortion - common issues when improvised tools are used - and helps maintain the integrity of both the locknut and the component it secures. The socket demands less space around the bearing arrangement than when using a hook spanner and allows the use of ratchets and torque wrenches via a 1/2" drive. KMT Socket Specifications Size A (mm) B (mm) C (mm) M (mm) S (mm) Weight Kgs KMT4 26 36.7 42 45 1/2" 0.28 KMT5 30 40.8 46 45 1/2" 0.5 KMT6 35 45.8 51 45 1/2" 0.38 KMT7 40 50.8 56 45 1/2" 0.45 KMT8 50 60.7 67 45 1/2" 0.64 KMT9 55 65.7 72 45 1/2" 0.75 KMT10 60 69.9 77 50 1/2" 0.87 KMT11 65 79.5 87 50 3/4" 1.2 KMT12 70 83.5 92 53 3/4" 1.3   Please note image shows KMT12 socket for illustrative purposes only.

Read more less

696500-KMT7 - Locknut Socket The Sykes-Pickavant KMT Sockets are designed for the safe, accurate installation and removal of KMT locknuts - specialised precision nuts used to secure bearings and other critical components on shafts. These nuts feature slots around their circumference, which means a standard socket or spanner cannot be used without risking damage to the nut or shaft. KMT sockets are purpose-built tools that engage directly with the nut’s slots, providing a positive drive connection that distributes torque evenly. This prevents slippage, rounding, or distortion - common issues when improvised tools are used - and helps maintain the integrity of both the locknut and the component it secures. The socket demands less space around the bearing arrangement than when using a hook spanner and allows the use of ratchets and torque wrenches via a 1/2" drive. KMT Socket Specifications Size A (mm) B (mm) C (mm) M (mm) S (mm) Weight Kgs KMT4 26 36.7 42 45 1/2" 0.28 KMT5 30 40.8 46 45 1/2" 0.5 KMT6 35 45.8 51 45 1/2" 0.38 KMT7 40 50.8 56 45 1/2" 0.45 KMT8 50 60.7 67 45 1/2" 0.64 KMT9 55 65.7 72 45 1/2" 0.75 KMT10 60 69.9 77 50 1/2" 0.87 KMT11 65 79.5 87 50 3/4" 1.2 KMT12 70 83.5 92 53 3/4" 1.3   Please note image shows KMT12 socket for illustrative purposes only. Individual KM sockets and extension pieces CLICK HERE LINK

Read more less

696500-KMT8 - Locknut Socket The Sykes-Pickavant KMT Sockets are designed for the safe, accurate installation and removal of KMT locknuts - specialised precision nuts used to secure bearings and other critical components on shafts. These nuts feature slots around their circumference, which means a standard socket or spanner cannot be used without risking damage to the nut or shaft. KMT sockets are purpose-built tools that engage directly with the nut’s slots, providing a positive drive connection that distributes torque evenly. This prevents slippage, rounding, or distortion - common issues when improvised tools are used - and helps maintain the integrity of both the locknut and the component it secures. The socket demands less space around the bearing arrangement than when using a hook spanner and allows the use of ratchets and torque wrenches via a 1/2" drive. KMT Socket Specifications Size A (mm) B (mm) C (mm) M (mm) S (mm) Weight Kgs KMT4 26 36.7 42 45 1/2" 0.28 KMT5 30 40.8 46 45 1/2" 0.5 KMT6 35 45.8 51 45 1/2" 0.38 KMT7 40 50.8 56 45 1/2" 0.45 KMT8 50 60.7 67 45 1/2" 0.64 KMT9 55 65.7 72 45 1/2" 0.75 KMT10 60 69.9 77 50 1/2" 0.87 KMT11 65 79.5 87 50 3/4" 1.2 KMT12 70 83.5 92 53 3/4" 1.3   Please note image shows KMT12 socket for illustrative purposes only.

Read more less

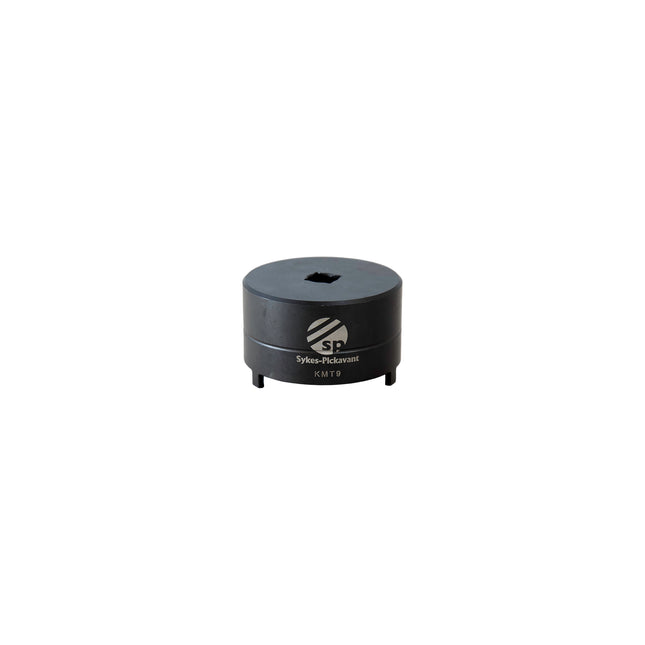

696500-KMT9 - Locknut Socket The Sykes-Pickavant KMT Sockets are designed for the safe, accurate installation and removal of KMT locknuts - specialised precision nuts used to secure bearings and other critical components on shafts. These nuts feature slots around their circumference, which means a standard socket or spanner cannot be used without risking damage to the nut or shaft. KMT sockets are purpose-built tools that engage directly with the nut’s slots, providing a positive drive connection that distributes torque evenly. This prevents slippage, rounding, or distortion - common issues when improvised tools are used - and helps maintain the integrity of both the locknut and the component it secures. The socket demands less space around the bearing arrangement than when using a hook spanner and allows the use of ratchets and torque wrenches via a 1/2" drive. KMT Socket Specifications Size A (mm) B (mm) C (mm) M (mm) S (mm) Weight Kgs KMT4 26 36.7 42 45 1/2" 0.28 KMT5 30 40.8 46 45 1/2" 0.5 KMT6 35 45.8 51 45 1/2" 0.38 KMT7 40 50.8 56 45 1/2" 0.45 KMT8 50 60.7 67 45 1/2" 0.64 KMT9 55 65.7 72 45 1/2" 0.75 KMT10 60 69.9 77 50 1/2" 0.87 KMT11 65 79.5 87 50 3/4" 1.2 KMT12 70 83.5 92 53 3/4" 1.3   Please note image shows KMT12 socket for illustrative purposes only.

Read more less

696500-KMT10 - Locknut Socket The Sykes-Pickavant KMT Sockets are designed for the safe, accurate installation and removal of KMT locknuts - specialised precision nuts used to secure bearings and other critical components on shafts. These nuts feature slots around their circumference, which means a standard socket or spanner cannot be used without risking damage to the nut or shaft. KMT sockets are purpose-built tools that engage directly with the nut’s slots, providing a positive drive connection that distributes torque evenly. This prevents slippage, rounding, or distortion - common issues when improvised tools are used - and helps maintain the integrity of both the locknut and the component it secures. The socket demands less space around the bearing arrangement than when using a hook spanner and allows the use of ratchets and torque wrenches via a 1/2" drive. KMT Socket Specifications Size A (mm) B (mm) C (mm) M (mm) S (mm) Weight Kgs KMT4 26 36.7 42 45 1/2" 0.28 KMT5 30 40.8 46 45 1/2" 0.5 KMT6 35 45.8 51 45 1/2" 0.38 KMT7 40 50.8 56 45 1/2" 0.45 KMT8 50 60.7 67 45 1/2" 0.64 KMT9 55 65.7 72 45 1/2" 0.75 KMT10 60 69.9 77 50 1/2" 0.87 KMT11 65 79.5 87 50 3/4" 1.2 KMT12 70 83.5 92 53 3/4" 1.3   Please note image shows KMT12 socket for illustrative purposes only.

Read more less

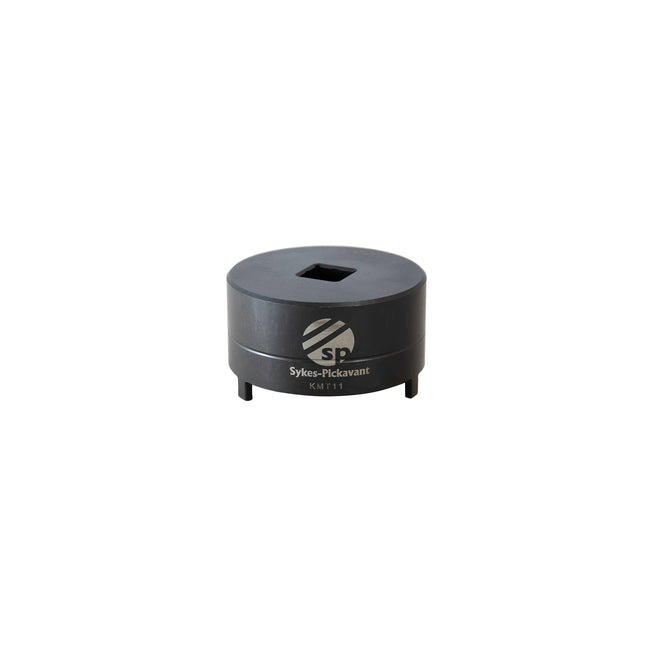

696500-KMT11 - Locknut Socket The Sykes-Pickavant KMT Sockets are designed for the safe, accurate installation and removal of KMT locknuts - specialised precision nuts used to secure bearings and other critical components on shafts. These nuts feature slots around their circumference, which means a standard socket or spanner cannot be used without risking damage to the nut or shaft. KMT sockets are purpose-built tools that engage directly with the nut’s slots, providing a positive drive connection that distributes torque evenly. This prevents slippage, rounding, or distortion - common issues when improvised tools are used - and helps maintain the integrity of both the locknut and the component it secures. The socket demands less space around the bearing arrangement than when using a hook spanner and allows the use of ratchets and torque wrenches via a 3/4" drive. KMT Socket Specifications Size A (mm) B (mm) C (mm) M (mm) S (mm) Weight Kgs KMT4 26 36.7 42 45 1/2" 0.28 KMT5 30 40.8 46 45 1/2" 0.5 KMT6 35 45.8 51 45 1/2" 0.38 KMT7 40 50.8 56 45 1/2" 0.45 KMT8 50 60.7 67 45 1/2" 0.64 KMT9 55 65.7 72 45 1/2" 0.75 KMT10 60 69.9 77 50 1/2" 0.87 KMT11 65 79.5 87 50 3/4" 1.2 KMT12 70 83.5 92 53 3/4" 1.3   Please note image shows KMT12 socket for illustrative purposes only.

Read more less

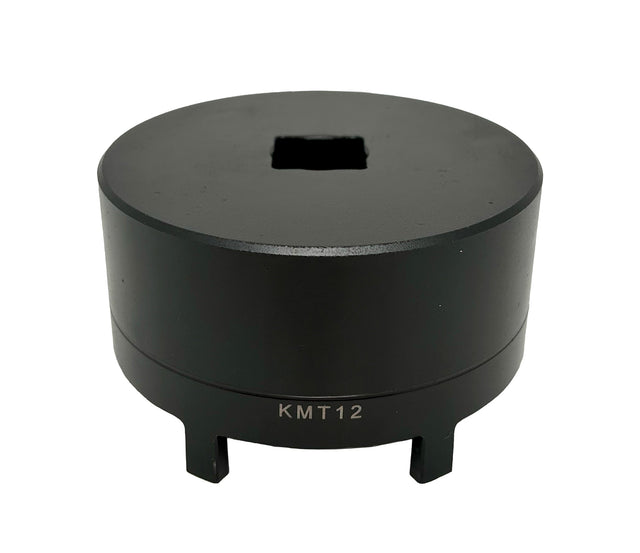

696500-KMT12 - Locknut Socket The Sykes-Pickavant KMT Sockets are designed for the safe, accurate installation and removal of KMT locknuts - specialised precision nuts used to secure bearings and other critical components on shafts. These nuts feature slots around their circumference, which means a standard socket or spanner cannot be used without risking damage to the nut or shaft. KMT sockets are purpose-built tools that engage directly with the nut’s slots, providing a positive drive connection that distributes torque evenly. This prevents slippage, rounding, or distortion - common issues when improvised tools are used - and helps maintain the integrity of both the locknut and the component it secures. The socket demands less space around the bearing arrangement than when using a hook spanner and allows the use of ratchets and torque wrenches via a 3/4" drive. KMT Socket Specifications Size A (mm) B (mm) C (mm) M (mm) S (mm) Weight Kgs KMT4 26 36.7 42 45 1/2" 0.28 KMT5 30 40.8 46 45 1/2" 0.5 KMT6 35 45.8 51 45 1/2" 0.38 KMT7 40 50.8 56 45 1/2" 0.45 KMT8 50 60.7 67 45 1/2" 0.64 KMT9 55 65.7 72 45 1/2" 0.75 KMT10 60 69.9 77 50 1/2" 0.87 KMT11 65 79.5 87 50 3/4" 1.2 KMT12 70 83.5 92 53 3/4" 1.3   Please note image shows KMT12 socket for illustrative purposes only.

Read more less
