Mechanical Puller Spares
08271200 - Twin Head - 75mm M12
Twin Head Length: 75mm Thread: M12 For use with the following: 082705000830000008420000084206000849000008490300084905000849060009400300
-
08291200 - Twin Head - 165mm long M12
Twin Head Length 165mm Thread M12
-
08271300 - Triple Beam 38mm Radius M12
Triple Head Radius 38mm Thread M12 Suitable for use with the following:082700000827050008420000084206000849000008490300084905000849060009400300
-
08281200 - Twin Head - 110mm M16
Twin Head Length 110mm Thread M16
-
08281300 - Triple Head for Mechanical Puller
Triple Head Radius 55mm Thread M16
-
08291300 - Triple Head - 38mm
Triple Head Radius 38mm Thread M24
-
08271400 - Leg Assembly - Reversible
Leg Assembly (Reversible) for Mechanical Puller Length 124mm 08270000082705000830000008420000084206000849000008490300084905000849060009400300
-
08281400 - Leg Assembly - Reversible
Leg Assembly (Reversible) for Mechanical Puller Length 236mm
-
08291400 - Leg Assembly - Adjustable
Leg Assembly - Standard Adjustable Length 305mm
-
08331400 - Leg Assembly - Adjustable
Leg Assembly - Standard Adjustable Length 437mm
-
08602800 - Thin Jaw Leg Extension - 48mm
48mm extension piece for thin jaw puller legs
-
08271100 - Force Screw 130mm M12 x 1.75
Forcing Screw Length 130mm Thread M12 x 1.75
-
08601400 - Thin Jaw Leg 75mm
Thin Jaw Leg for use with Thin Jaw Puller Series Specifications: Length: 122 mm Working Dimensions: 75 mm Can be extended with leg extension part no 08602800 - Thin Jaw Leg Extension - 48mm See puller components illustrations and kit content tables for more details on spares
-
08281100 - Force Screw 230mm M16
Forcing Screw Length 230mm Thread M16 For use with Mechanical Pullers:082800000828050008310000084200000842060008490000084903000849050008490600093053000930050009400300
-
08291100 - Forcing Screw - 292mm
Forcing Screw Length 292mmThread M24 x 3.00
-
08545170 - Hollow Bolt for 08545000
Hollow Bolt for 08545000
-
08545400 2 Way Beam - Slide Hammer & Extractor
For use with 08545000 kit
-
08545600 3 Way Beam with Nuts & Bolts - Slide Hammer & Extractor
3 Way Beam with Nuts & Bolts for 08545000 - Slide Hammer Puller Kit - Combi Pull
-
08601200 - Twin Beam - 118mm M12
Twin Beam for Mechanical Puller Length 118mm Thread M12 For kits:086000000860800008607000
-
08601300 - Triple Beam for Mechanical Pullers
Triple Beam for Mechanical Pullers Radius 59mm Thread M12 Suitable for kits:0860800008601000
-

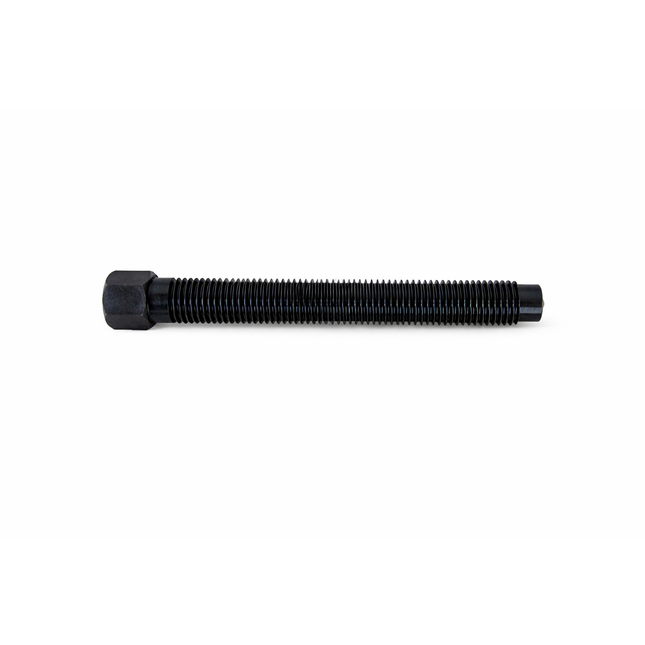

08611100 - Forcing Screw - M24 217mm
Forcing Screw Length 217mm Thread M24 x 3.00 For use with 08654400 & 08654500 Mechanical Pullers
-
08611200 - Twin Beam - 210mm M24
Twin Beam for Mechanical Puller Length 210mm Thread M24 Suitable for Mechanical Kits:08610000086350000865440008654500
-
08611400 - Thin Jaw Puller Leg 150mm
Thin Jaw Leg for use with Thin Jaw Puller Series Specifications: Length 215 mm Working dimensions: 150 mm Can be extended with leg extension part no 08612800 - Thin Jaw Leg Extension 75mm See puller components illustrations and kit content tables for more details on spares
-
08611670 - Nut for 08611400 Leg
Nut for 08611400 150mm Leg - Thin Jaw For Mechanical & Hydraulic Puller
-
08611770 - Washer for 08611400 Leg
Washer for 08611400 150mm Leg - Thin Jaw For Mechanical & Hydraulic Puller
-
08612800 - Thin Jaw Leg Extension 75mm
75mm extension piece for thin jaw puller legs
-
08621200 - Twin Beam - 285mm M24
Twin Beam for Mechanical Puller Length 285mm Thread M24Suitable for Kits:086250000865440008654500
-
08651300 - Triple Beam M24 125mm
Triple Beam for Mechanical Pullers Radius 125mm Thread M24 Suitable for kits:0864000008650000
-
09301200 - Twin Beam for Mechanical Puller
Twin Beam for use with Mechanical Puller & Separator Kits Length 118mm Thread M16
-
09301500 Main Rod for Mechanical Puller
Main Rod for use with Mechanical Puller & Separator Kits Length 160mm Thread 3/8" x 20 BSF
-
09311100 Forcing Screw with Nut
Forcing Screw with Nut Length 305mm Thread 3/4" x 12 BSF
-
09311500 - Main Rod Assembly
Main Rod for use with Mechanical Puller & Separator Kits Length 254mm Thread 1/2" x 16BSF includes nuts & washers (rod only see 09311670)
-
09311670 Main Rod for External Separators
Main Pulling Rod only 254mm long (1/2" x 16BSF) (see 09311500 for complete rod assembly with nuts & washers)
-
09311900 - Extension Rod 285mm
Extension Rod for use with Mechanical Puller & Separator Kits Length 285mm Thread 1/2" x 16 BSF
-
09312000 Thread protector - 63mm long
Thread Protector - 63mm Long (1/2 x 16 BSF)When ordering an internal pulling attachment users should also order the correct thread protectors to fit their pulling unit or bearing puller kit.For use with:Pulling Unit Part No. 09410000Pulling Kit Part No. 09310000
-
09312100 Thrust Race
Thrust Race
-
09312300 - Extension Rod 127mm
Extension Rod for use with Mechanical Puller & Separator Kits Length 127mm Thread 1/2" x 16 BSF
-
09321100 Screw / Thrust nut
For use with kit 09320000 Length 305 mm Thread 1" x 10 BSF
-
09321500 - Main Rod Assembly 332mm
Main Rod for use with Mechanical Puller & Separator Kits Length 332mm Thread 5/8" x 14 BSF
-
09321900 - Extension Rod 272mm
Extension Rod for use with Mechanical Puller & Separator Kits Length 272mm Thread 5/8" x 14 BSF
-
09322000 - Thread protector - 38mm
Thread Protector - 38mm Long (5/8 x 14 BSF)When ordering an internal pulling attachment users should also order the correct thread protectors to fit their pulling unit or bearing puller kit. For use with:Pulling Unit Part No. 09420000Pulling Kit Part No. 09320000
-
09322100 Thrust Nut
For use with kit 09320000
-
09322300 - Extension Rod 152mm
Extension Rod for use with Mechanical Puller & Separator Kits Length 152mm Thread 5/8" x 14 BSF
-
09350000 - Internal Race Extractor
Pulling attachment for Sykes-Pickavant bearing pullers, part numbers 09310000 and 09320000. Users should also use correct thread protector to fit their bearing puller. Supplied in cardboard box. Internal Reach Min - Max: 40-150mmExternal Reach Max: 100mmUse with 09310000 and 09320000 Kits* - use 09350100 screw adaptor*Thread Protectors - When ordering an internal pulling attachment usersshould also order the correct thread protectors to fit their pulling unit or bearing puller kit.Pulling Unit Part No. 09410000 / Pulling Kit Part No. 09310000Use thread protectors Part No. 09312000 (2)Pulling Unit Part No. 09420000 / Pulling Kit Part No. 09320000Use thread protectors Part No. 09322000 (2)
-
09352070 Adaptor for 09530000
Adaptor for 09530000
-
09582000 - 1/2" Female to M8 male converter
Adaptor for fitting smaller sized split collet extractors to the slide hammers 08542100 and 08532000 Specification: 1/2" Female to M8 Male Required for: 09580900 - Split Collet Extractor 6.5 - 8mm 09581000 - Split Collet Extractor 8.5 - 10mm 09581100 - Split Collet Extractor 10 - 12mm 09581200 - Split Collet Extractor 12 - 17mm 09581300 - Split Collet Extractor 19 - 22mm 09581400 - Split Collet Extractor 22 - 30mm
-
09811870 Washer
Washer for 09400000 Pulling Unit
-
131100-01 - Twin Beam 134mm
Twin Beam Suitable for 13110000 & 13310000 pullers Width 134mm
