Description

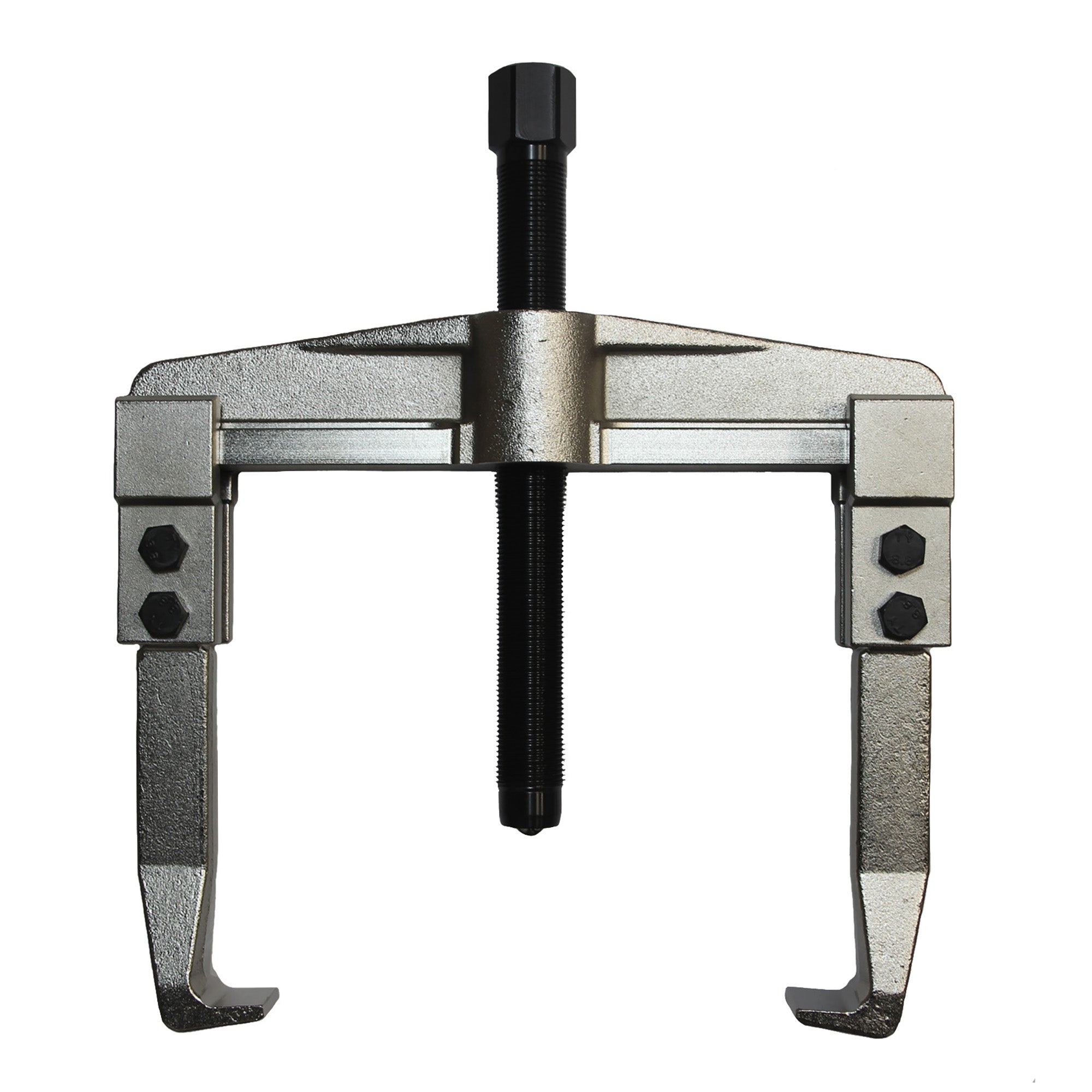

The Sykes Pickavant 1300 Series Puller range has been designed specifically for both External and Internal pulling tasks. The twin leg pullers have rigid legs, giving them great stability and firmness during use, allowing parts to be safely and efficiently extracted.
The 1300 range gives the user the option of choosing between short or long legs*, depending on the task to be performed.
*See downloads for more information on the 1300 series 2 leg pullers and compatible long & short legs
Key Features:
-
2 Leg Design: Ensures excellent stability and access in restricted areas, ideal for working around obstructions where traditional 3 leg pullers can't reach.
-
Reversible Legs: Easily change between internal and external pulling by reversing the legs.
-
Hexagonal Spindle Head: Allows for effortless application of force using a wrench
-
Spindle with Ball Support: Built in support ball minimizes friction during pulling, optimizing performance during the extraction process.
-
Versatile Applications: Great for pulling gears, pulleys and bearings, in both industrial and automotive settings.
Dimensions
-
External Spread: 50 - 240mm (B)
-
Internal Spread: 175 - 325mm (W)
-
Reach: 205mm (A)
-
Width of Beam: 325mm (C)
-
Max Force: 12 Ton
Not suitable for use with air/impact tools.
Optional Extra
- Long reach jaws ref 133300-02, will give your puller extra reach up to 380mm
