150000XT - 1500 Series 8 Tonne Extra Travel Ram

Description

150000XT - 1500 Series 8 Tonne Extra Travel Ram

The 150000XT is an upgraded version of our standard 150000V2 ram, offering increased stroke length for applications where additional travel is required. Designed for durability and consistent performance, it integrates seamlessly with the full range of 1500 Series hydraulic components.

Key Features

  • 8-tonne capacity
  • Extended travel for improved versatility (85mm travel)
  • 4 x faster output operation than standard 1500 Series ram.
  • Integrated pressure relief control valve opens at 8 tonnes and cannot be overloaded.
  • Compatible with current 1500 series pullers. Thread: 1.1/2" Diameter 16tpio
  • Robust construction for demanding workshop environments
  • Oil hydraulics work in any position - even upside down.
  • Features piston with spring return.

Technical Specifications

  • Capacity: 8 tonnes
  • Type: Extra-travel hydraulic ram (85mm travel)
  • Series: 1500 Series
  • Construction: Heavy-duty steel
  • Compatibility: Fully interchangeable with rams used across the 1500 Series

Kits Containing This Item

This ram can be built into any existing kit that currently uses the 150000V2 ram. If you require a customised kit or need guidance on compatibility, please contact Customer Services for more details.

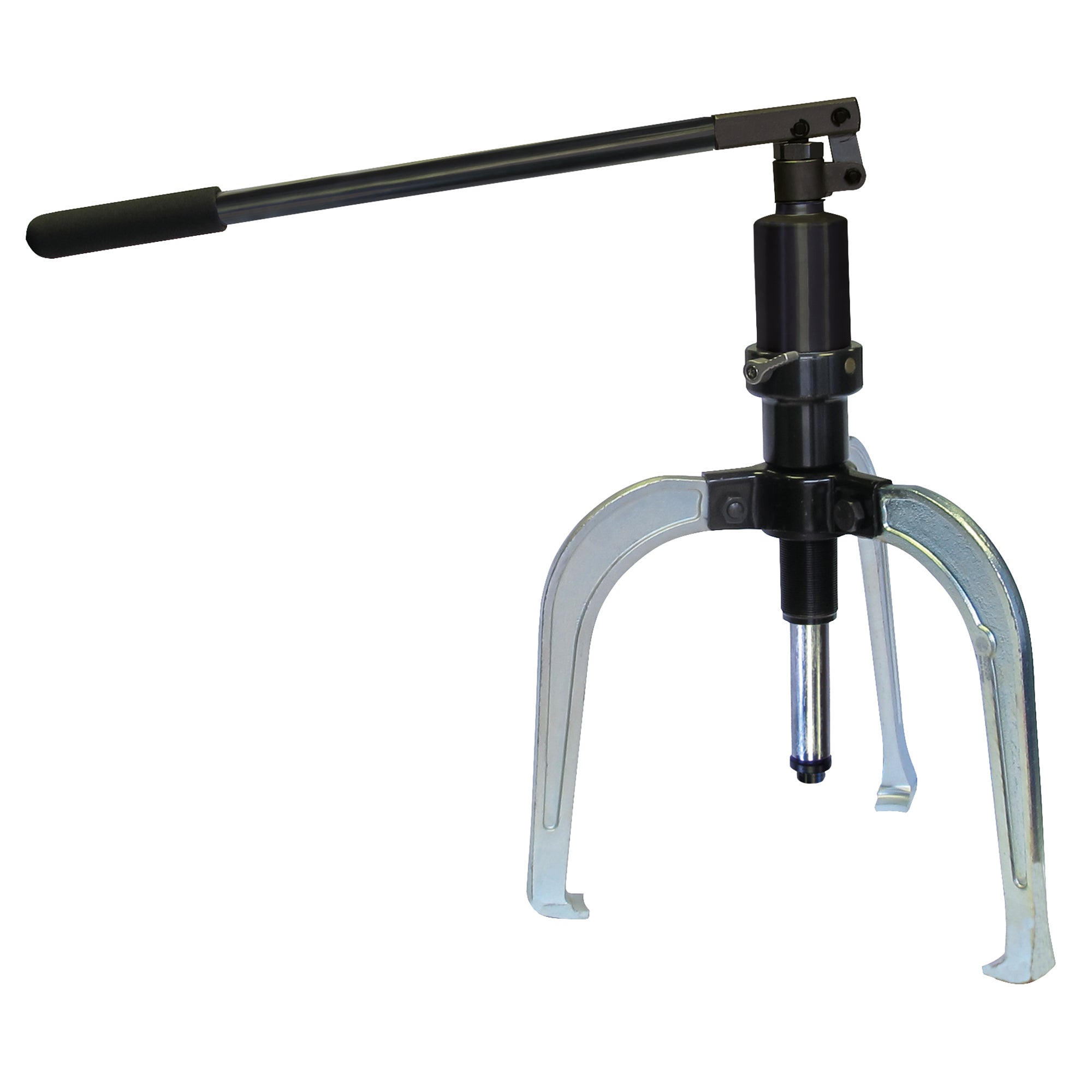

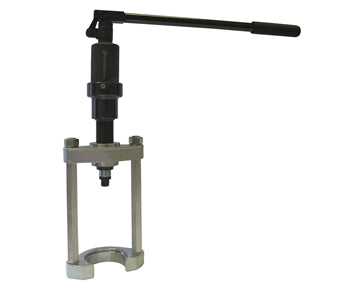

Note: Images showing legs / beams and universal press frame not included - Shown for illustration purposes only
